| Product Name: | Aluminum foil container making machine | Driven type: | Electric and pneumatic |
|---|---|---|---|
| Color: | can be request | Function: | Punch press |
| Usage: | Metal forming machine | PLC: | SIEMENS |
| Speed: | 40-70PCS/Stroke | Power: | 5.5-7.5KW |
| High Light: | aluminum foil container production line,Aluminum Foil Container Machine |
||
Fully automatic aluminum foil container making machine / aluminum foil container production line
Applications:
Used for producing different sizes of aluminum foil containers
Our Service:
Warranty is one year , and we will provide you technical support forever.
- Installation and training in customer’s place is available . buyer should pay our engineer’s round way air ticket , food , room and daily pay 70usd/day/person . it will take about totally about 5days
Specification of High Accuracy Press:
Nominal pressure : 400KN
Slide Block Stroke:100-260mm
slide Stroke per minutes :70-50 times
Maximum Die Set Height :270-400mm
Die Set Height Adjustment:60mm
Slide Bottom Size:410X340mm
Stemhole Size:60mm* 60mm
Bolster Surface Size:810*440mm/990*750mm
Total power:5.5KW
Weight:3800-4500 kg
Overall Dimension Before Changed :1440*1080*2300mm
Overall Dimension after Changed :1550*1150*2500mm
Specification of Aluminum Foil Feeding Machine:
| Item number | XWSL-55 |
| Max.width of ROLL | 550MM |
| Max.unwind roll diameter | 600mm |
| feeding speed | 0-35m/min |
| feeding length | 20-999mm |
| feeding Accuracy | +-0.3mm |
| Working voltage | 380/220v |
| Total power | 1kw |
| Weight of machine | 850kg |
| Dimension | 2000*1300*900mm |
Competitive Advantage:
| (1) This full making machine work automatically. Worker control and regulate this plant through electric control panel, including the air-pressure and electricty. |
| (2) The Max. Width of decoiler is about 650mm. The Max. Diameter of foil roll is 600mm. |
| (3) There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically. |
| (4) The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by computer, which assure a high-precision step. |
| (5) The press can be equipped with single cavity or multi-cavity moulds for producing wrinkle-wall or smooth-wall container. It is equipped with a mould lifter which can lift and low the mould automatically when change a mould. |
|
(6) We can design and manufacture different machines on different customers' request. |
Description:
1. Production line by the feeder, precision presses, molds (optional), waste collection system, consisting of the finished collection device.
2. The production line adopts PLC program control, gas / electric integration of centralized control, safe and reliable. Feed length and production speed and other parameters is simple, automated production.
3. Feeding operation, stamping, waste collection, automated product out of the mold.
4. Precision presses using welded steel body rigidity; and heat treated to eliminate the structural stresses precision machining aspects of stability, high reliability; using steel collapsed style fuse safe and reliable.
5. Feeding system using stepper control, feed length can be set arbitrarily accurate dimensional accuracy in the range of 20-999mm.
RFQ:
A: Are you a manufacturer?
B: yes, we're manufacturer and produce aluminum foil products & it’s equipment with good quality and competitive price
A: Can you do the machines’ appearance design for us?
B: Yes, we have professional team with rich experience in machine design and manufacturing.
A: How can I get a sample to check your quality
B: After price confirmation, we sincerely invite you to our factory to visit, I am representing our all staffs to welcome your coming for learning and checking our operation and production
A: How about warranty?
B: Warranty is 1 year since the machine is arrived in buyer’s place
A: what about the service?
B: During the warranty time, if the wearing parts have been damaged by non-person or can not use, seller will send the spare parts to buyer for free, but buyer have to bear the transportation charge.
A: How about the technical support?
B: Technical support supplied by seller forever
A: What are the terms of payment and currencies do you accept?
B: T/T or L/C is accepted, currently we appreciated your payment through USD,EUR, RMB
A: which type of aluminum foil container machine I should take ?
B: Generally we suggest 45T and 63T
45T is suitable for making the container size maximum :300*300*50mm (L*W*H)
63is suitable for making the container size maximum :350*350*60mm (L*W*H)
45T can make 250, 450 ,750 ml container with two cavity
63T can make 250, 450 ,750 ml container with three cavity
A: Delivery time :
B: 60days , all press we use is from Yangli brand , it’s best brand in China , the press delivery time is 50days , that’s why our whole machine’s delivery time is 60days . if only mould , delivery time is 45days . and our boss is mechanical and mould engineer himself , he will control the machine directly , so don’t worry about the quality
A: Does the material need lubricating oil?
B: yes , the lubricating oil is very necessary , and the oil is food grade , it is very special , after the order is confirmed , we will provide you the oil supplier’s contact information . and in our machine , there is lubricating system , you can put oil on the oil tank directly .
it need oil with one barrel , one barrel is 170kg , price is about 580usd/barrel .
A.Where I can get the aluminum foil raw material ?
B.we will provide you some material suppliers , you can contact them directly for comparing .
Material specification :
ALLOY -3003, Temper-H24 Or ALLOY -8011, Temper-H22
After order is confirmed , we will make drawing for the mould , and we will calculate the material thickness and width , then I will inform you ,then you can order the raw material
Aluminum foil container mould

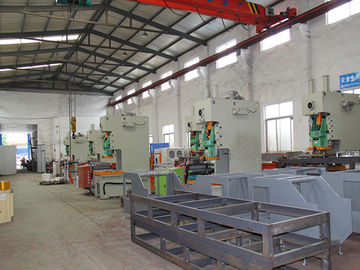

Production workshop for aluminum foil container making machine
Aluminum foil container production line, 45T aluminum foil container making machine
